MECHREF MODULAR
SANDWICH PANEL COLDROOM
MECH REF PU INSULATION PANEL is designed for various commercial and industrial application mainly for the purposes of Control temperature, humidity and noise in a room or close environment.
Our wall, ceiling and floor sandwich panels are formed-in with “CAMLOCK” type locking devices for erection and assembly holding the panels locking together.
Our “tongue & groove” sandwich panels joint are sealed with silicone sealant.

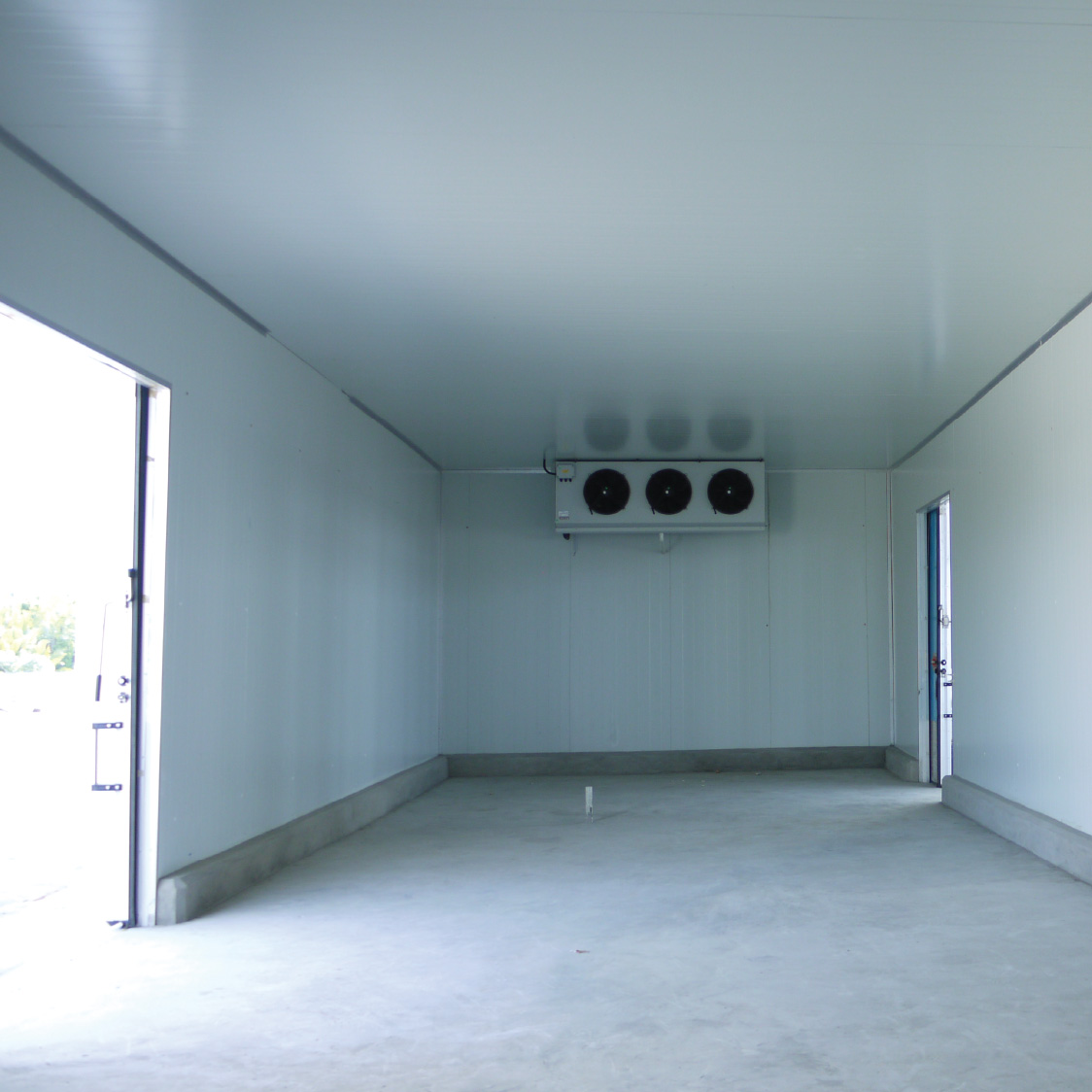

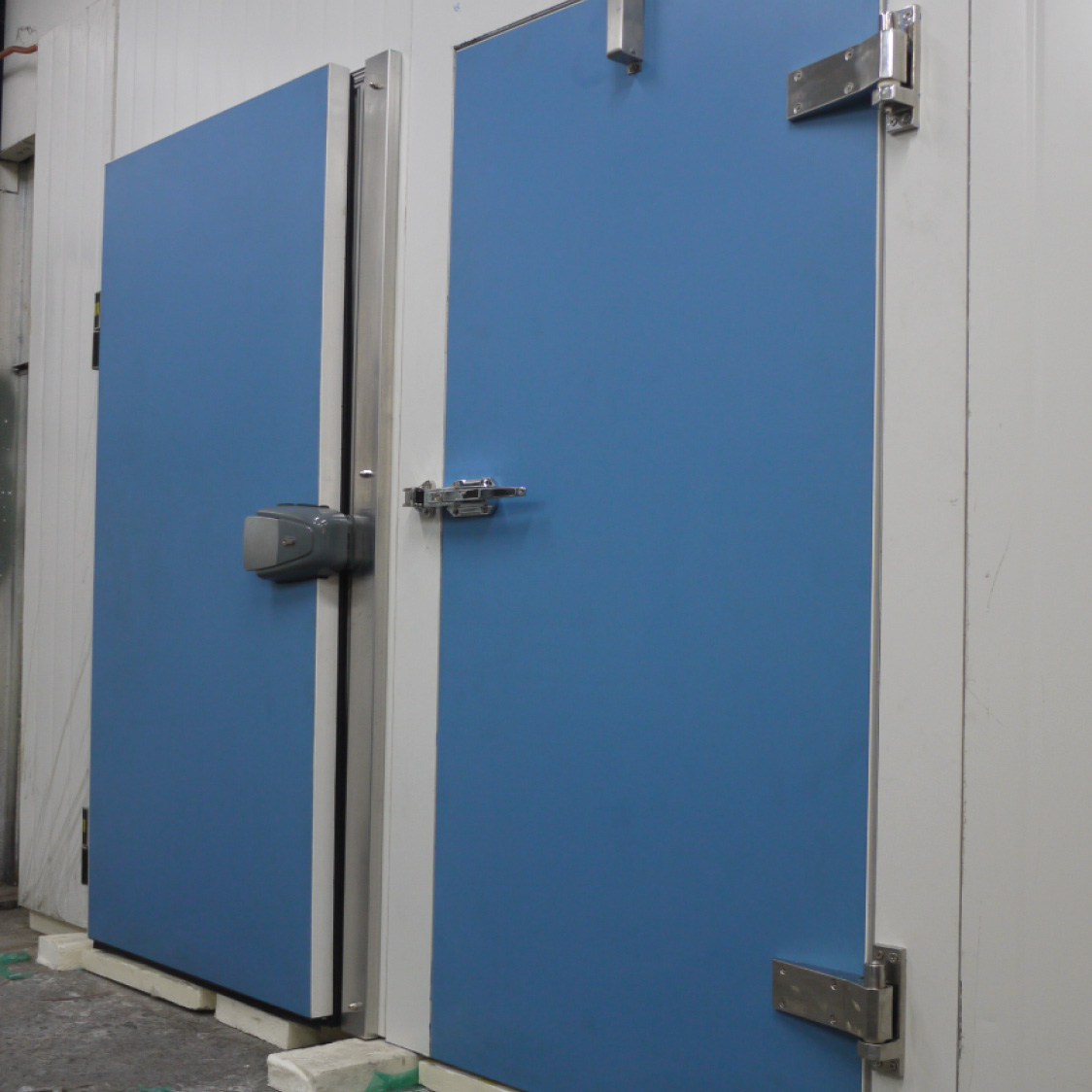

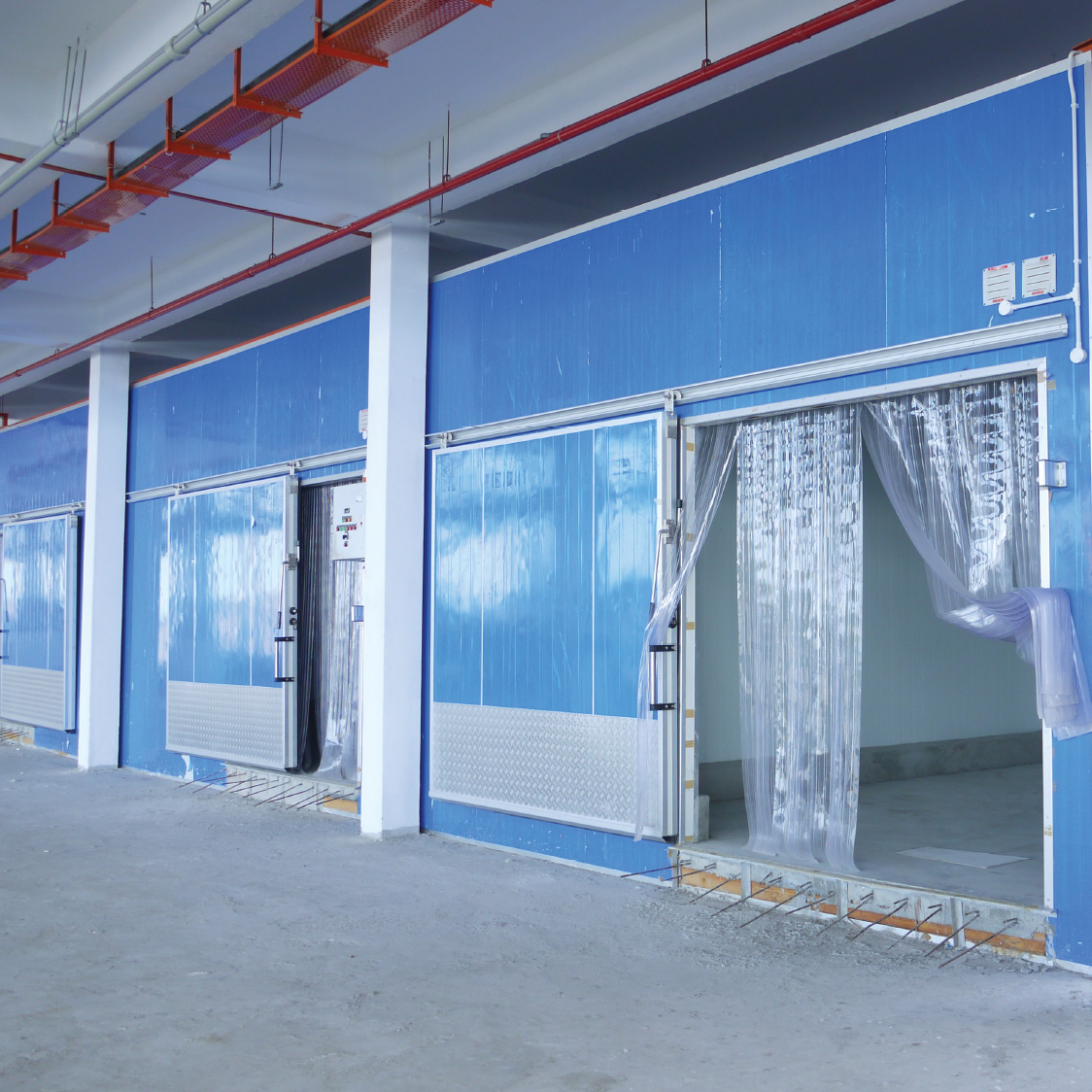

Project References
Local & International Projects
Customizable Shapes and Features
The technology of cold storage has taken big leaps; it has grown extensively since past decades. From simple cold storage units to current advanced and intelligent cold storage, the technology has taken a huge leap.
Extra Accessibilities

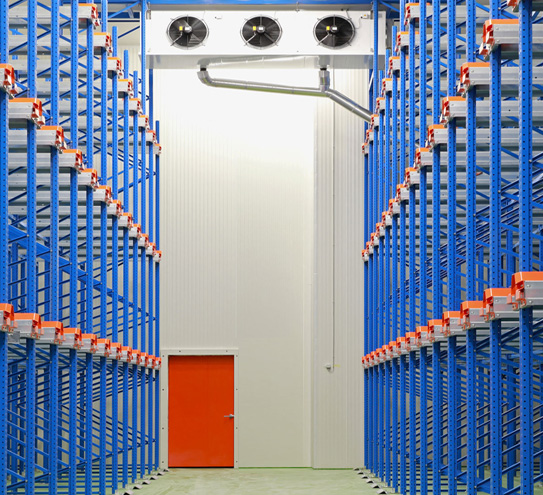

A cold storage designed to be compatible with warehouse racking system not only provides extra space on the same footprint, it increases the storage capacity and product volume as well.
Save Money & Less Food/Product Wastage
- Product lifespan increase especially for perishable goods
- Product freshness improve.
- Seasonal and high uncertainty product supply and sold can have proper storage.
- Wastage or spoilage of product reduce significantly.
All these are done by creating an apt cold environment with correct humidity requirements.
Defrost Option
- Defrost can be automated at fix interval.
- Inverter system can intelligently monitor and supervise to defrost regularly.
All these helps to improve the product shelf life and freshness.
Energy Saving
- Inverter system can intelligently monitor and supervise to run optimally at all time.
- The RIGHT CORE THICKNESS & OPTIMAL PU DENSITY can provide a higher THERMAL EFFICIENCY.
Low Maintenance
The cold room PU insulation panels have minimal moving parts, as a result the wear & tear maintenance is minimal.
Highly Stable
Once the cold room PU insulation panels are installed and in place, it is very stable.
Great help for farmers
Cold room is an ideal “intermediary” storage for
- Peak harvest storage
- Keep products fresh sell at the RIGHT TIME at the RIGHT PRICE
- “intermediate” supply chain

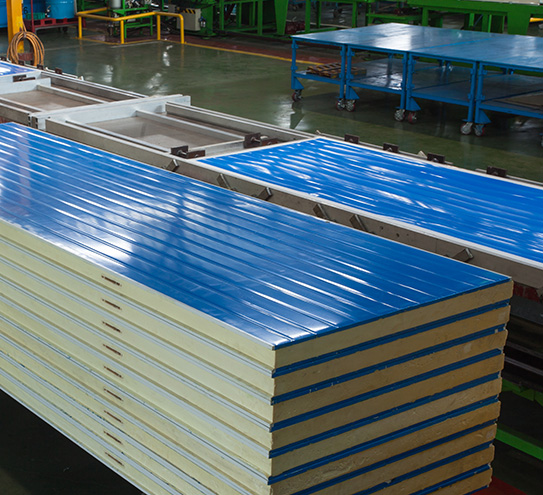

Highly Customizable Polyurethane Panels
We provide designed and supplies of various type of cold room polyurethane sandwich panels for wide range of commercials and industrial used.
Standard Specifications
-
Dimension
1200mm width x any desired length up to 12,000mm -

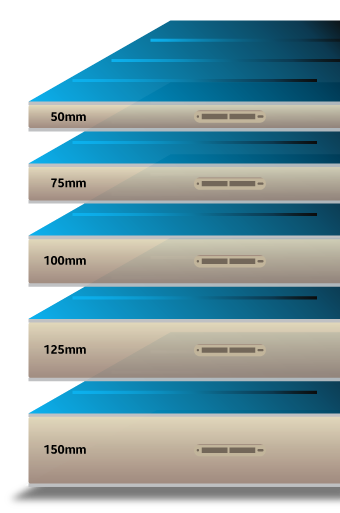

Thickness of Panel
50mm up to 150mm (50mm, 75mm, 100mm, 125mm, 150mm) -
Insulation Core
50mm up to 150mm (50mm, 75mm, 100mm, 125mm, 150mm) -
Density Overall
40 to 45kg/m³ -
Thickness of Skins
Standard
Laminated with hot dipped pre-painted galvanised sheet (White)
Stainless steel and aluminium sheet also available optional
0.5mm (PPGI sheet)
0.5mm 2B304 Stainless Steel Sheet
0.5mm 2B316 Stainless Steel Sheet -
Joints
Full cam-lock or Semi cam-lock system
The panels can be made to various thickness from 50 to 150mm. The recommended design thickness of Insulation Specifications.
PU Insulation Panels Installation Details

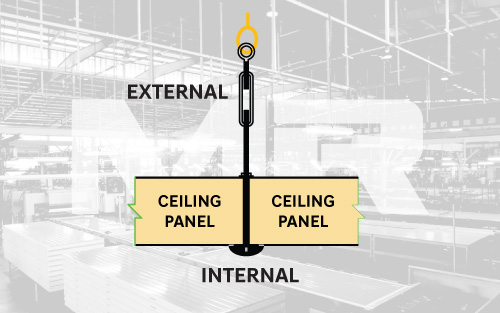

Ceiling Hanging Profile

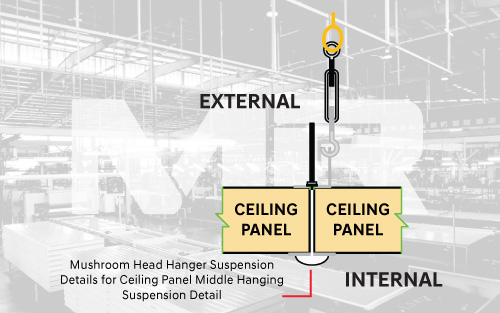

Ceiling Mushroom Head

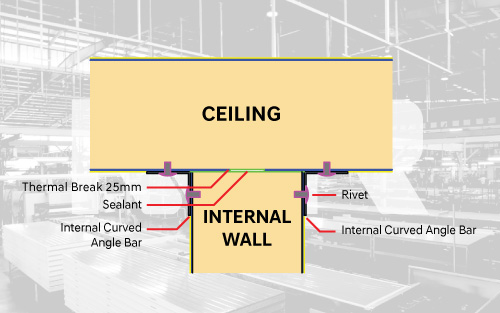

Internal Wall to Ceiling

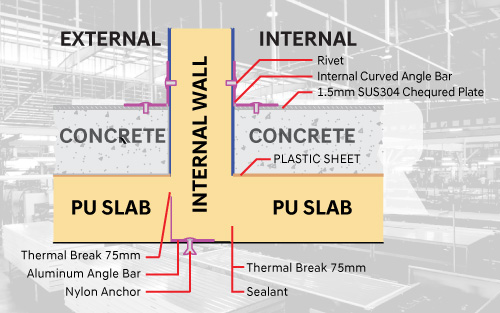

Internal Wall to Floor Finishing

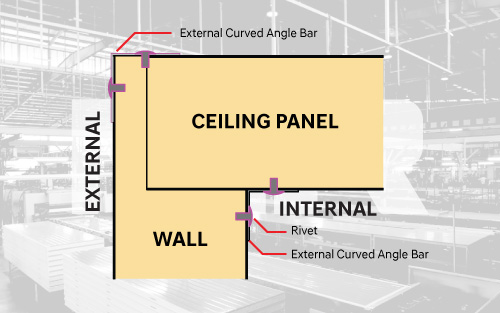

Wall to Ceiling

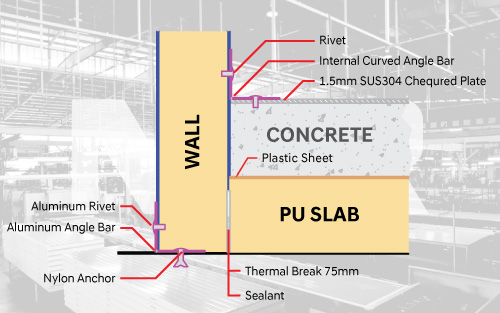

Wall to Floor Finishing

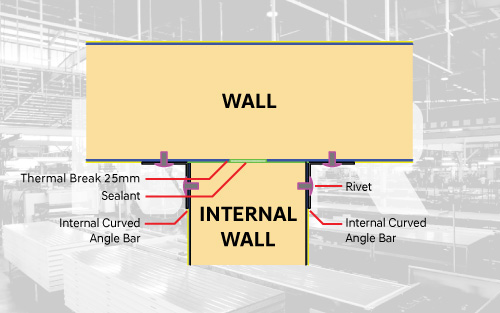

Wall to Internal Wall

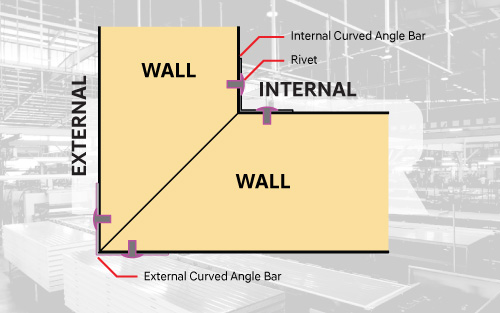

Wall to Wall
Custom Cold Room Design Tailored to Your Specific Needs
We have wide range of core thickness,support finishings and panel joints for added customization to suit your needs. The panels can be assembled either vertically or horizontally and are suitable for both interior and exterior applications.
MechRef
Custom Cold
Room Panels
MechRef
Custom
Cold Room
MechRef
Custom

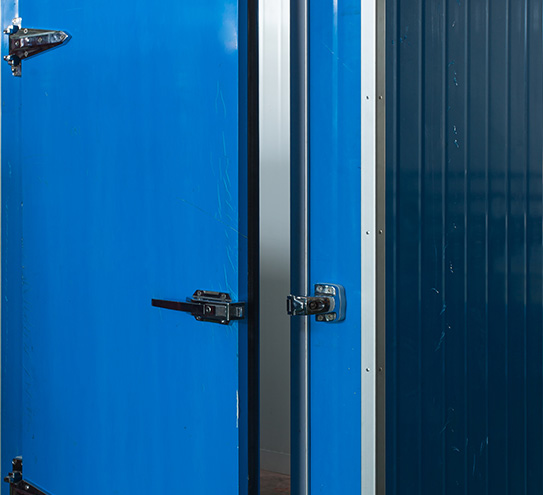

Doors
WE ARE READY TO SERVE
From initial consultation to final installation, Mech Ref is able to guide you through your project.
